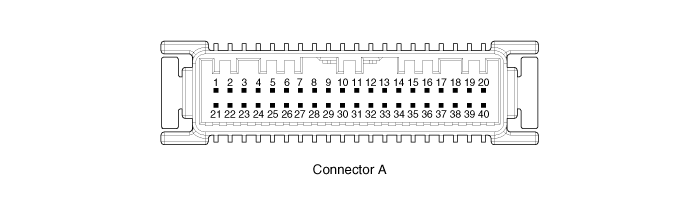

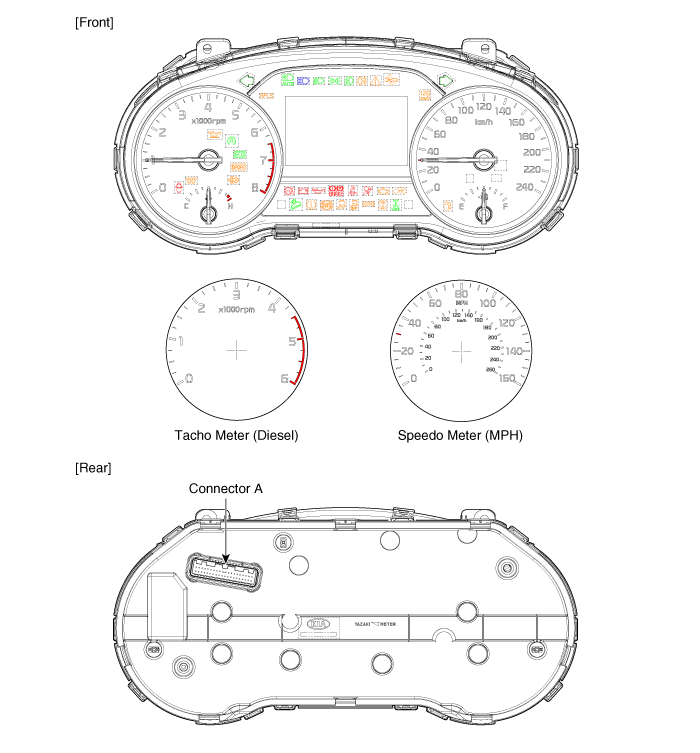

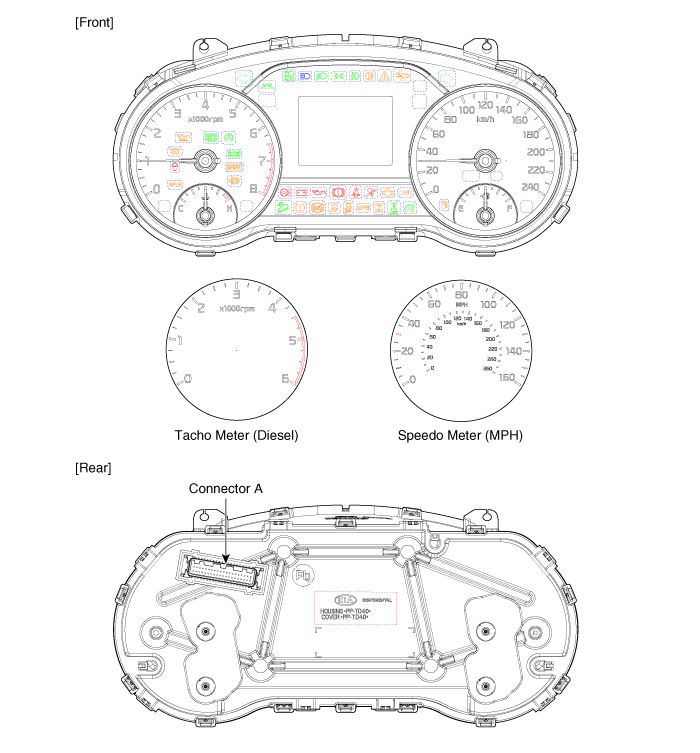

| Components |



|
No. |
Description |
No. |
Description |
|
1 |
Ground |
21 |
Trip switch (-) |
|
2 |
Illumination (-) |
22 |
Trip switch 1 (+) |
|
3 |
Rheostat switch (Down)_Input |
23 |
Trip switch 2 (+) |
|
4 |
Rheostat switch (Up)_Input |
24 |
AT ('P' Position) |
|
5 |
- |
25 |
AT ('R' Position) |
|
6 |
- |
26 |
AT ('N' Position) |
|
7 |
Water separator (+)_Input |
27 |
AT ('D' Position) |
|
8 |
Oil press switch (-)_Input (Gasoline only) |
28 |
AT ('S' Position) |
|
9 |
Alternator (-)_Input (Gasoline only) |
29 |
Multimedia-CAN (Low) |
|
10 |
Active ECO_lnput |
30 |
Multimedia-CAN (High) |
|
11 |
Driver mode switch_Input (AT only) |
31 |
Alternator (-)_Output |
|
12 |
Immobilizer_Input |
32 |
Chassis-CAN (High) |
|
13 |
Washer level low_Input |
33 |
Chassis-CAN (Low) |
|
14 |
Fuel sender (+)_Input |
34 |
Cluster speaker (+)_Output |
|
15 |
Fuel sender supply (+)_Output (FFV only) |
35 |
Cluster speaker (-)_Output |
|
16 |
Fuel sender (-)_Input |
36 |
Ground |
|
17 |
Vehicle speed_Output |
37 |
Ground |
|
18 |
Detent_Output |
38 |
LDC (B+)_Input |
|
19 |
Airbag (+)_Input |
39 |
IGN 1 |
|
20 |
Tail lamp_Input |
40 |
Battery (+) |
Troubleshooting
Instrument Cluster Schematic diagrams
