Kia Sportage: Immobilizer System / Immobilizer Control Unit Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Immobilizer System / Immobilizer Control Unit Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly")

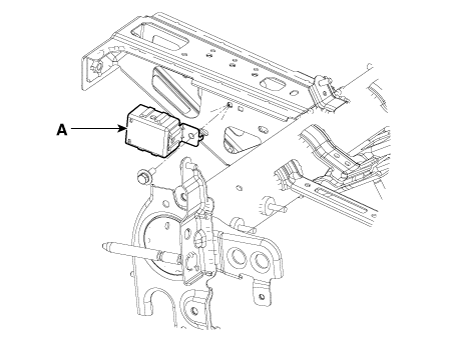

3.	Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.

Installation

1.	Install the immobilizer control unit after connecting the unit connector.

2.	Install the main crash pad assembly.

3.	Connect the negative (-) battery terminal.

Repair procedures
