Components

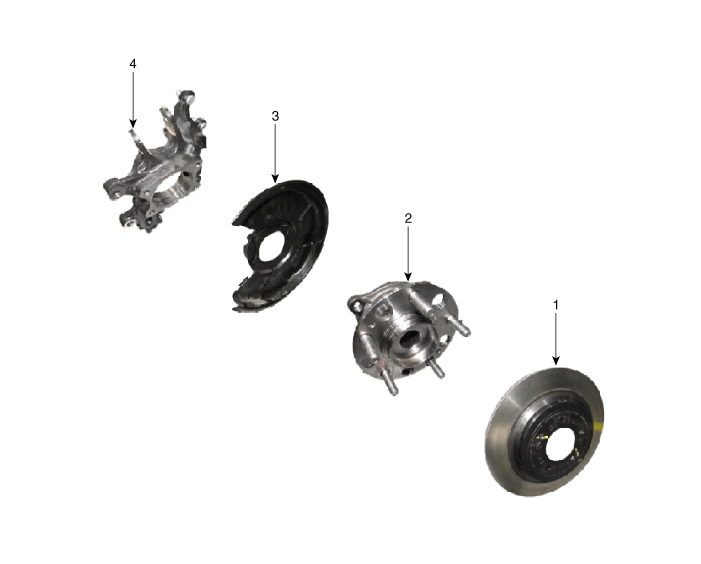

[NON-EPB Type]

1. Rear brake disc
2. Rear hub assembly
3. Dust cover
4. Rear carrier assembly

[EPB Type]

1. Parking brake assembly
2. Rear hub assembly
3. Dust cover
4. Rear carrier assembly

Rear Axle Assembly / Rear Hub - Carrier
...

Repair procedures
Removal [2WD] 1. Remove wheel nuts, wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m ...
