Kia Sportage: Hood / Hood Latch Components and components location

Kia Sportage QL (2015-2024) Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Components and components location

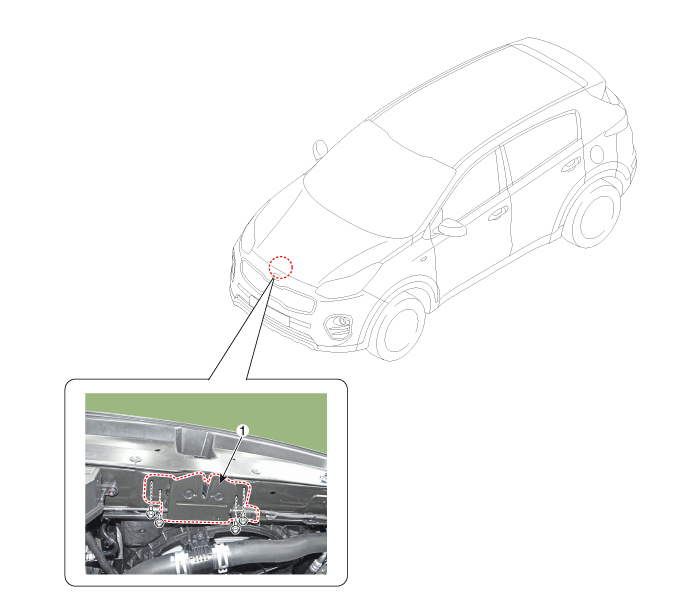

Component Location

1. Hood lower latch assembly

Hood Latch Release Handle Repair procedures
Replacement 1. Using a remover, remove the hood release handle (A). 2. Install in the reverse order of removal. ...

Hood Latch Repair procedures
Replacement 1. Remove the front bumper cover. (Refer to Front Bumper - "Front Bumper Cover") 2. Disconnect the hood l ...
