Kia Sportage: Front Seat Belt / Height Adjust Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.

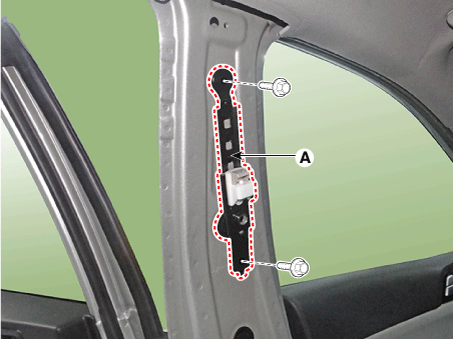

After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

3.
Install in the reverse order of removal.

Replace any damaged clips.
