Removal

1.	Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - Repair Procedures - "Release Residual Pressure in Fuel Line").

2.	Remove the rear seat. (Refer to Body - "Rear Seat Assembly")

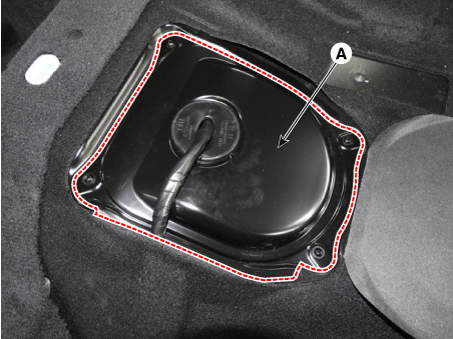

3.	Remove the fuel pump service cover (A).

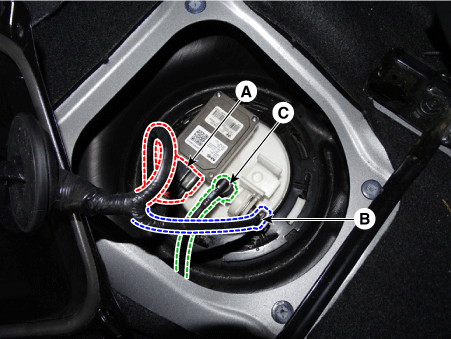

4.	Disconnect the fuel pump control module connector (A).

5.	Disconnect the fuel pressure sensor connector (B).

6.	Disconnect the fuel feed tube quick connector (C).

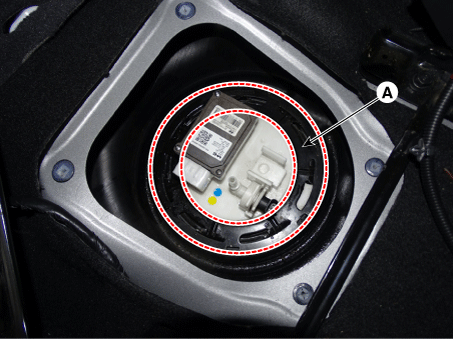

7.	Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].

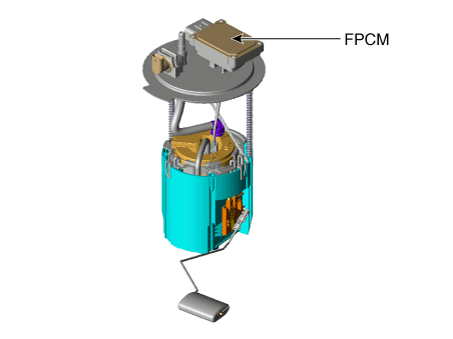

Fuel Pump Control Module (FPCM) Schematic diagrams

Circuit Diagram Terminal Illustration Terminal Function Pin No. Description 1 Fuel sender groun ...

Fuel Pressure Sensor (FPS) Specifications

Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 50 (0.51, 7.3) 0.3 600 (6.12, 87.0) ...
