Kia Sportage: Front / Rear Parking Assist System / Front Rear Parking Assist System Switch Schematic diagrams

Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / Front / Rear Parking Assist System / Front Rear Parking Assist System Switch Schematic diagrams

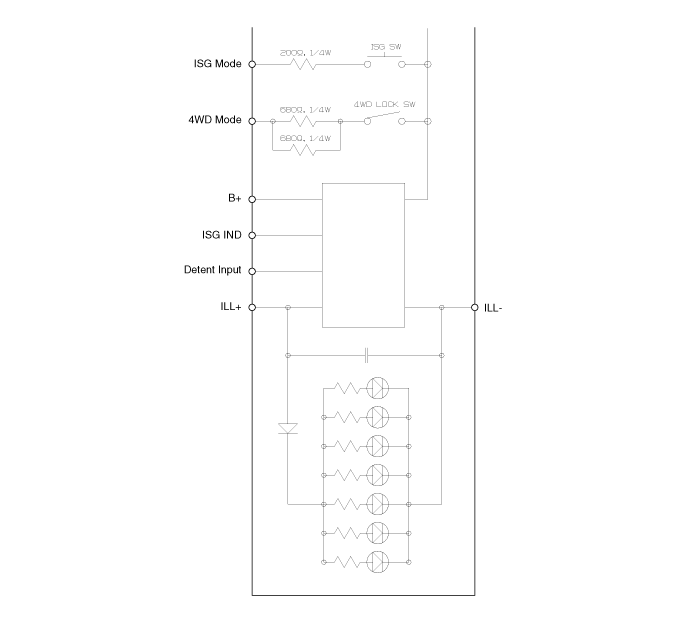

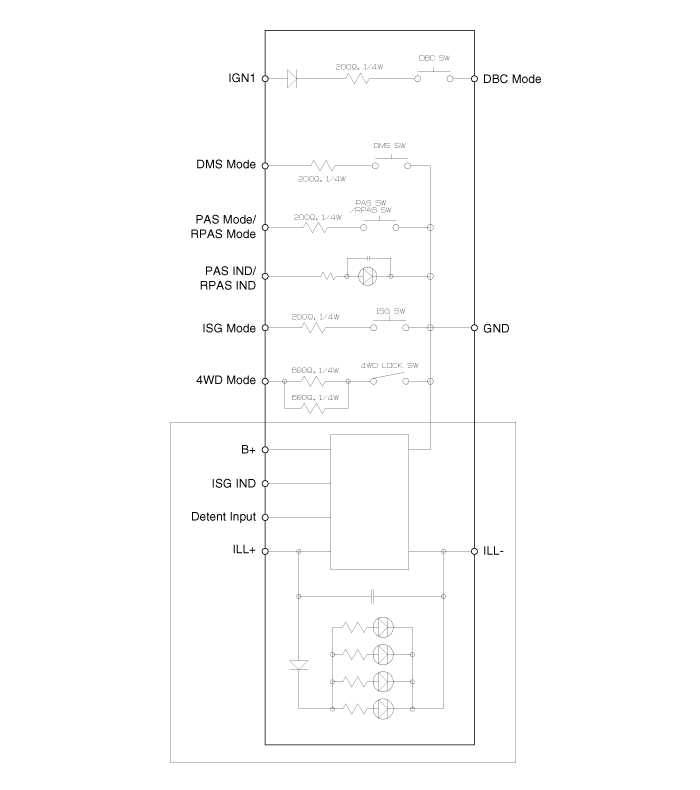

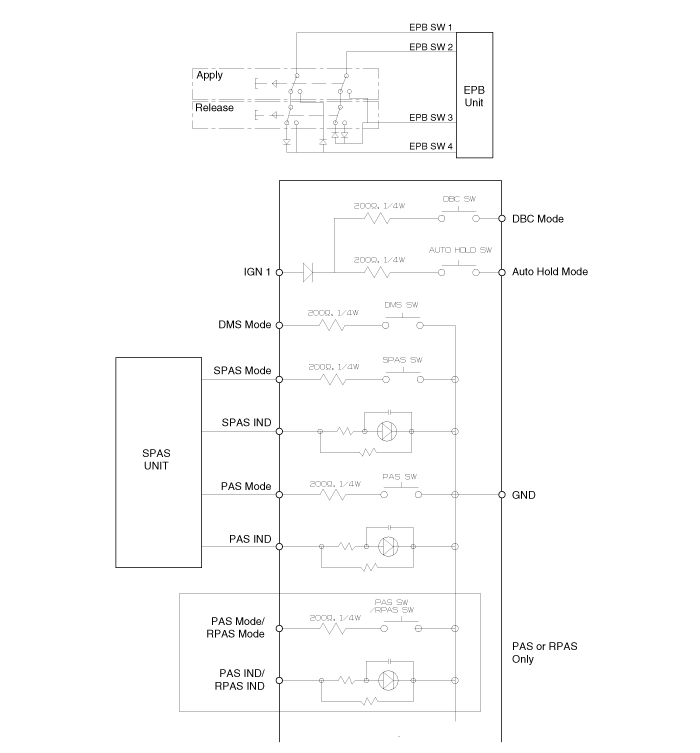

Circuit Diagram

Automatic Transaxle type

Manual Transaxle type

Front Rear Parking Assist System Switch Components and components location

Component Automatic Transmission type Manual Transaxle type ...

Front Rear Parking Assist System Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the console upper cover. (Refer to Body - "Floor Consol ...
