Kia Sportage: Front Door / Front Door Side Weatherstrip Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip Repair procedures

Replacement
1.

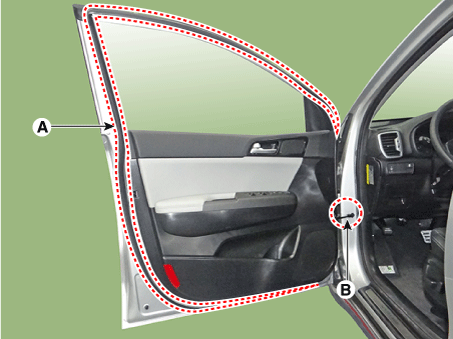

Loosen the front door checker (B) mounting bolt.
Tightening torque :
19.6 - 29.4 N·m (2.0 - 3.0 kgf·m,14.5 - 21.7 lb·ft)
2.
Detach the clips, and then remove the front door side weatherstrip (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
