Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
3.
Remove the cargo screen (A).
4.
Remove the luggage covering met (B).
5.
Remove the luggage tray board (C).
6.
Remove the rear transverse trim (D).
7.
Remove the luggage side trim (E) after loosening the mounting screws.
8.
Install in the reverse order of removal.

Replace any damaged clips.

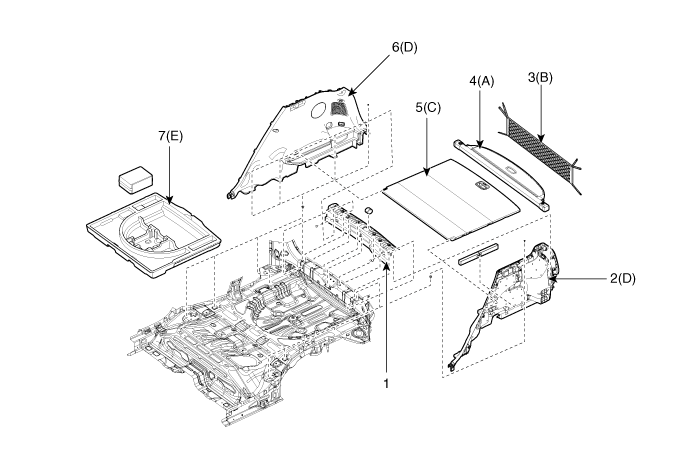

1. Rear transverse trim
2. Luggage side trim [LH]
3. Luggage net
4. Cargo screen
5. Luggage board
6. Luggage side trim [RH]
7. Luggage floor tray

Trunk Trim
...
