Kia Sportage: Front Door / Front Door Inside Handle Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

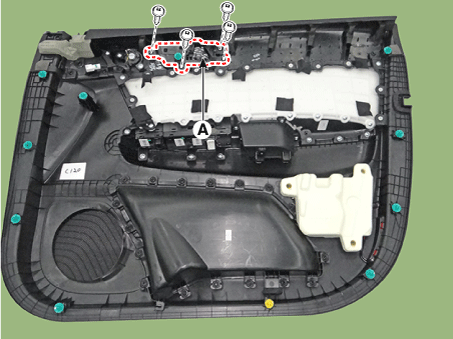

After loosening the mounting screws, then remove the front door inside handle (A).


Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
