Removal

[Front Seat]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center fascia lower panel. (Refer to body - "Center Fascia Panel")

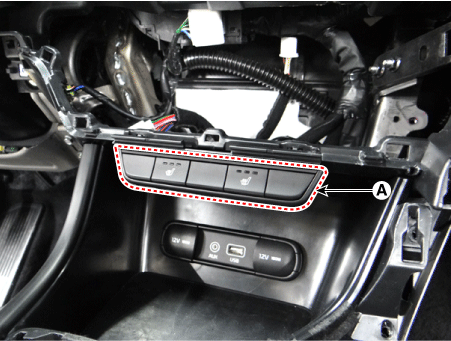

3.	Using a flat-tip screwdriver, remove the front seat heater switch (A).

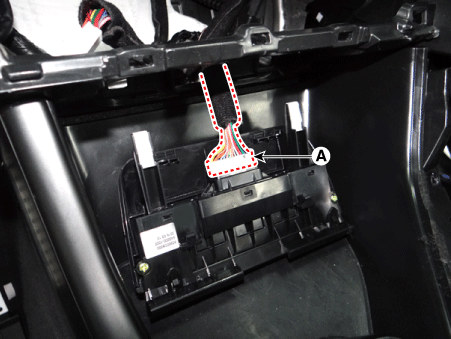

4.	Disconnect the front seat heater switch connector (A).

[Rear Seat]

1.	Disconnect the negative (-) battery terminal.

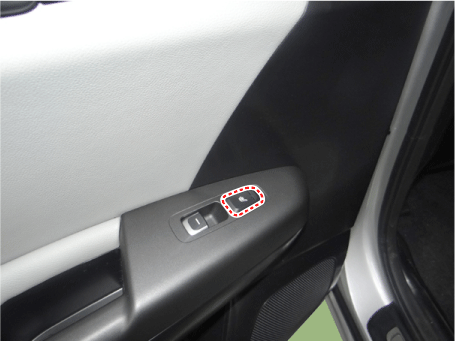

2.	Remove the rear door power window switch. (Refer to Power Windows - "Power Window Switch")

Installation

[Front Seat]

1.	Connect the front seat heater switch connector.

2.	Install the front seat heater switch.

3.	Install the center fascia lower panel.

4.	Connect the negative (-) battery terminal.

[Rear Seat]

1.	Install the rear door power window switch.

2.	Connect the negative (-) battery terminal.
