Kia Sportage: Audio / External Amp Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Audio / External Amp Components and components location

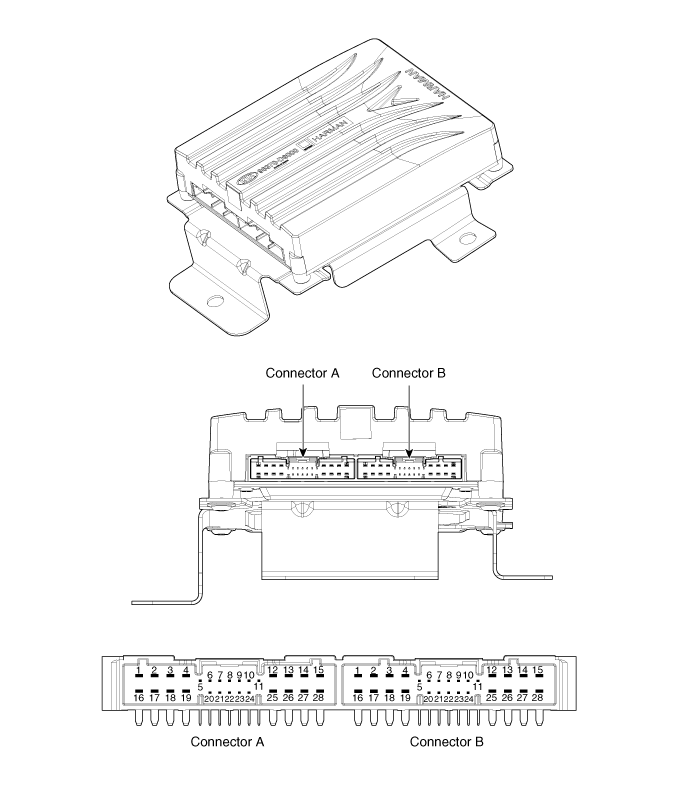

Components

Connector Pin Information

No.	Connector A	No.	Connector B
1	Battery (+)	1	Subwoofer2 speaker (+)
2	Battery (+)	2	Subwoofer1 speaker (+)
3	Battery (+)	3	Front right tweeter speaker (+)
4	Battery (+)	4	Front left tweeter speaker (+)
5	-	5	-
6	Multimedia-CAN (High)	6	-
7	Multimedia-CAN (Low)	7	-
8	ACC	8	-
9	Navigation voice (+)	9	-
10	-	10	-
11	-	11	-
12	-	12	Rear right door speaker (+)
13	-	13	Rear left door speaker (+)
14	-	14	Front center speaker (+)
15	-	15	-
16	Ground	16	Subwoofer2 speaker (-)
17	Ground	17	Subwoofer1 speaker (-)
18	Ground	18	Front right tweeter speaker (-)
19	Ground	19	Front left tweeter speaker (-)
20	SPDIF (High)	20	-
21	SPDIF (Low)	21	-
22	SPDIF (Ground)	22	-
23	Navigation voice (-)	23	-
24	-	24	-
25	-	25	Rear right door speaker (-)
26	-	26	Rear left door speaker (-)
27	-	27	Front center speaker (-)
28	-	28	-

Speakers Repair procedures

Inspection Troubleshooting of the speakers When handling the speakers : • ...

External Amp Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the right luggage side trim. (Refer to Body - "Luggage ...
