Kia Sportage: Panoramic sunroof / Tilting the sunroof
Kia Sportage QL (2015-2024) Owners Manual / Features of your vehicle / Panoramic sunroof / Tilting the sunroof
When the sunshade is closed
.png)

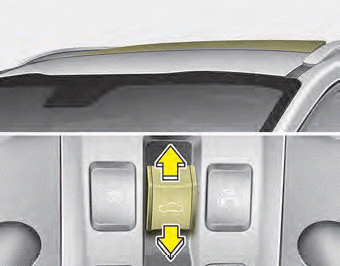

Push the sunroof control lever upward, the sunshade will slide halfway open then the sunroof glass will tilt.
To stop the sunroof movement at any point, push the sunroof control lever momentarily.
When the sunshade is opened
Push the sunroof control lever upward, the sunroof glass will tilt. To stop the sunroof movement at any point, push the sunroof control lever momentarily.
Sliding the sunroof
When the sunshade is closed
Push the sunroof control lever backward to the 2nd detent position, both the
sunshade and sunroof glass will slide all the way open. To stop the sunroof movement
at ...
Closing the sunroof
To close the sunroof glass with the sunshade
Push the sunroof control lever forward to the 2nd detent position. The sunroof
glass and sunshade will close automatically.
To stop the sunroof movemen ...
