Kia Sportage: Engine And Transaxle Assembly / Engine Cover Repair procedures

Kia Sportage QL (2015-2026) Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Cover Repair procedures

Removal and Installation

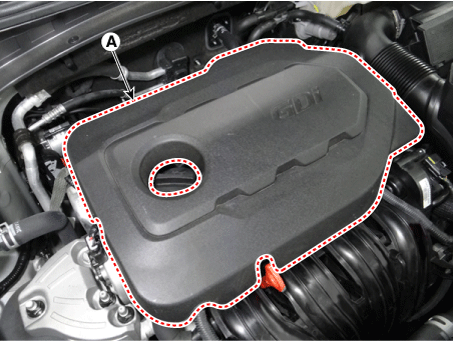

Remove the engine cover (A).

•	To avoid damage, remove the engine cover on room temperature.

•	To avoid damage of the engine cover, do not disengage both front and front and rear mounting point at the same time.

2.	Install in the reverse order of removal.
