Kia Sportage: Parking Brake System / Electric Parking Brake (EPB) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Brake System / Parking Brake System / Electric Parking Brake (EPB) Schematic diagrams

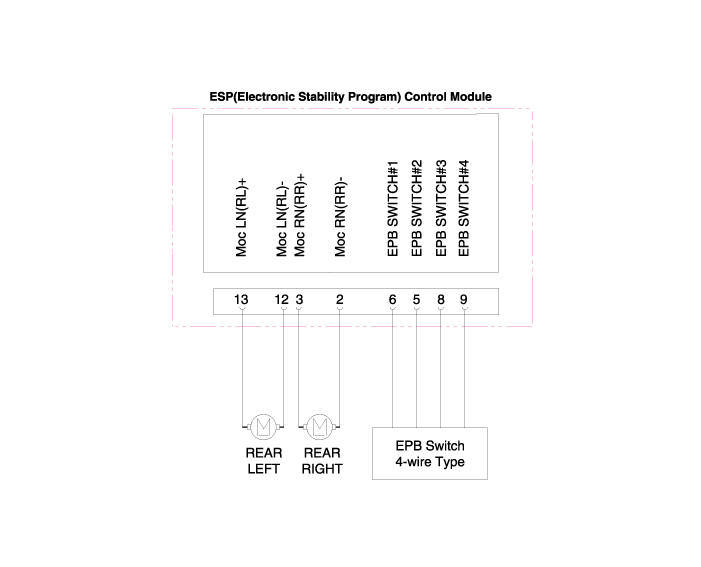

Schematic Diagrams

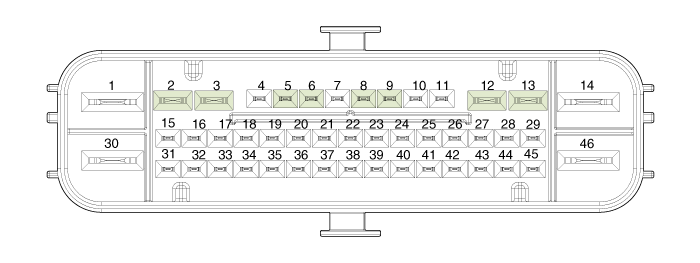

Terminal Function

Pin NO.
Function
Pin NO.
Function
2
RR Motor Ground
8
EPB signal 3
3
RR Motor Power
9
EPB signal 4
5
EPB signal 1
12
RL Motor Ground
6
EPB signal 2
13
RL Motor Power

Electric Parking Brake (EPB) Components and components location
Components 1. ESP(Electronic Stability Program) Control module 2. EPB switch 3. Electronic Parking Brake (EPB) Actuator ...

Electric Parking Brake (EPB) Repair procedures
Adjustment EPB Release 1. Turn ignition switch OFF and disconnect the negative (-) battery terminal. 2. Connect the GDS to the da ...
