Adjustment

EPB Release

1.	Turn ignition switch OFF and disconnect the negative (-) battery terminal.

2.	Connect the GDS to the data link connector located underneath the dash panel.

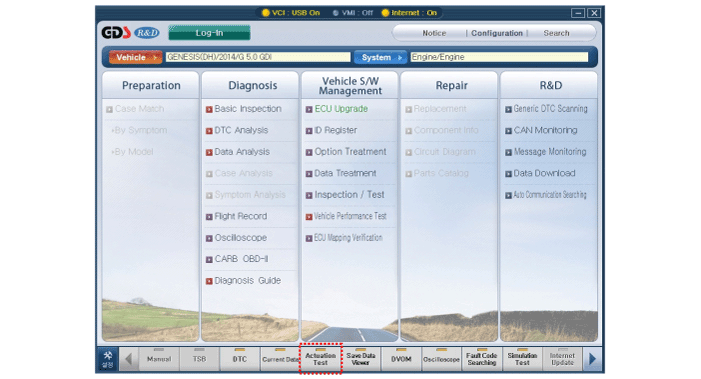

Select and operate according to the instructions on the GDS screen.

(1)	Select vehicle name.

(2)	Select ABS/ESP.

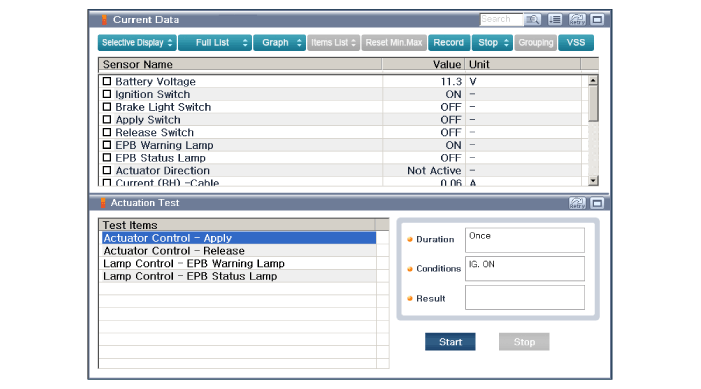

(3)	Select Actuation Test.

Removal

EPB SWITCH

1.	Disconnect the battery negative terminal.

2.	Remove the floor console upper cover. (Refer to Body group - "Console")

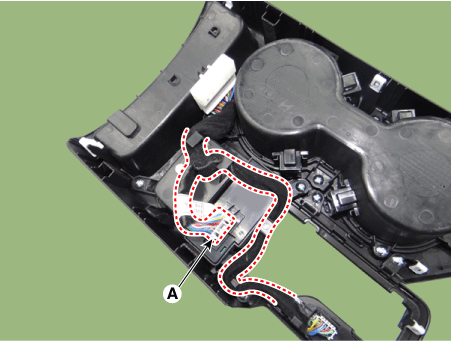

3.	Remove the EPB switch connector (A).

4.	Install in the reverse order of removal.

Electric Parking Brake (EPB) Schematic diagrams

Schematic Diagrams Terminal Function Pin NO. Function Pin NO. Function 2 RR Motor Gr ...

EPB Switch Repair procedures

Adjustment 1. Check the continuity between the switch terminals as the EPB switch is engaged. Pin NO. Func ...
