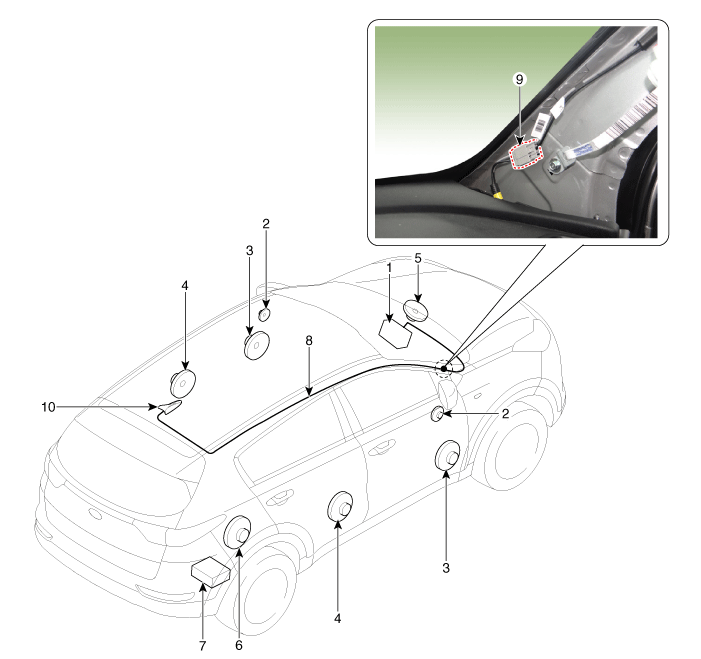

Component Location

1. AVN head unit (PIO Type)
2. Tweeter speaker
3. Front door speaker
4. Rear door speaker
5. Center speaker

6. Sub woofer speaker
7. External amplifier
8. Antenna feeder cable
9. Antenna cable connector
10. Roof antenna (AM/FM+GPS)
