Kia Sportage: Front Seat / Front Seat Shield Inner Cover Repair procedures

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Inner Cover Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

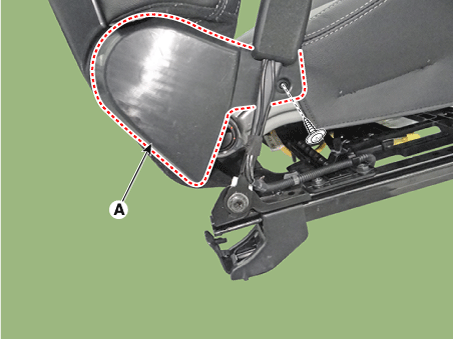

2.	Using a remover, remove the front seat shield inner cover (A).

Install in the reverse order of removal.

Replace any damaged clips.

Front Seat Shield Inner Cover Components and components location

Component Location 1. Front seat shield inner cover ...

Front Seat Back Cover Components and components location

Component Location 1. Front seat back cover ...
