Kia Sportage: Parking Brake System / EPB Switch Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Brake System / Parking Brake System / EPB Switch Repair procedures

Adjustment
1.

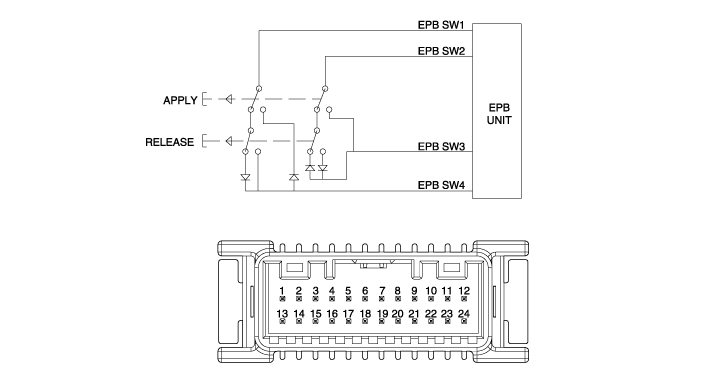

Check the continuity between the switch terminals as the EPB switch is engaged.

Pin NO.
Function
Pin NO.
Function
1
IGN1
13
ILL(+)
2
DBC MODE
14
PAS IND
3
NC
15
SPAS IND
4
ISG MODE
16
DMS MODE
5
PAS/RPAS MODE
17
PAS/RPAS IND
6
ACTIVE ECO MODE
18
EPB SW 4
7
B+
19
EPB SW 2
8
4WD LOCK MODE
20
DETENT INPUT
9
ISG IND
21
AUTO HOLD MODE
10
PAS MODE
22
EPB SW 3
11
SPAS MODE
23
EPB SW 1
12
ILL(-)
24
GND
