Kia Sportage: Cylinder Block / Drive Plate Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate Repair procedures

Removal and Installation
1.
Remove the automatic transaxle .
(Refer to Automatic Transaxle System - "Automatic Transaxle")
2.

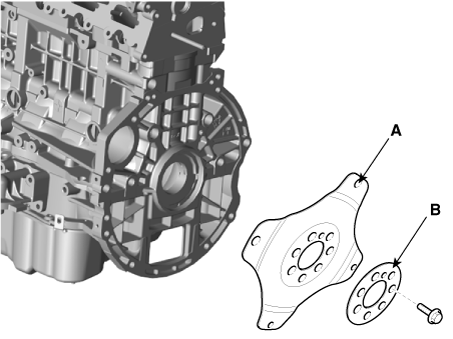

Remove the drive plate (A) and the adapter plate (B).
Tightening torque :
117.7 - 127.5 N·m (12 - 13 kg·m, 86.8 - 94.0 lb·ft)


Always use new drive plate bolts.
Install and uniformly tighten the 7 bolts, in several passes.
3.
Install in the reverse order of removal.
