Components

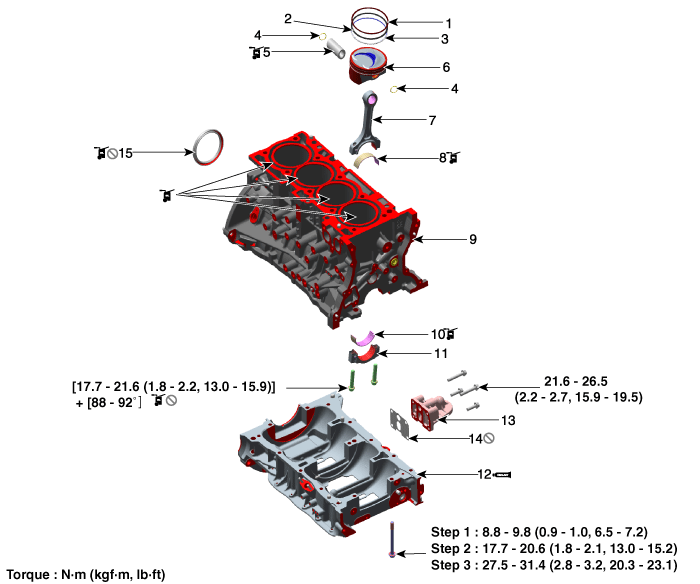

1. Piston ring (#1)
2. Piston ring (#2)
3. Oil ring
4. Snap ring
5. Piston pin
6. Piston
7. Connecting rod

8. Connecting rod upper bearing
9. Cylinder block
10. Connecting rod lower bearing
11. Connecting rod bearing cap
12. Ladder frame
13. Oil filter bracket
14. Oil filter bracket gasket
15. Rear oil seal

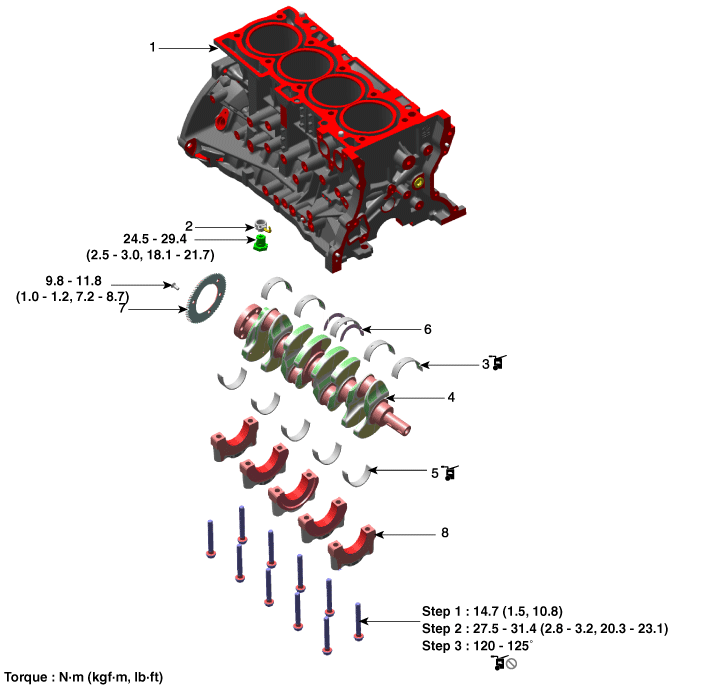

1. Cylinder block
2. Piston cooling oil jet
3. Crankshaft upper bearing
4. Crankshaft

5. Crankshaft lower bearing
6. Thrust bearing
7. Crankshaft position sensor (CKPS) wheel
8. Main bearing cap

Cylinder Block

...

Drive Plate Repair procedures
