Kia Sportage: Cooling System / Cooling Fan Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Schematic diagrams

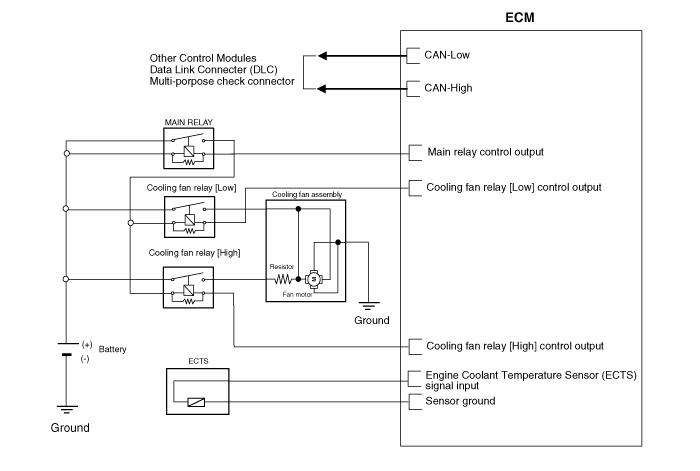

Circuit Diagram

Cooling Fan Specifications
Specifications Item Specification Fan type Puller Fan speed control Resistor Air ...

Cooling Fan Repair procedures
Removal and Installation Cooling fan assembly 1. Disconnect the battery negative terminal. 2. Remove the air duct. (Refer t ...
