Refilling And Bleeding

Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.

When pouring engine coolant, be sure to shut the relay box lid and not to let coolant spill on the electrical parts or the paint. If any coolant spills, rinse it off immediately.

1.	Make sure the engine and radiator are cool to the touch.

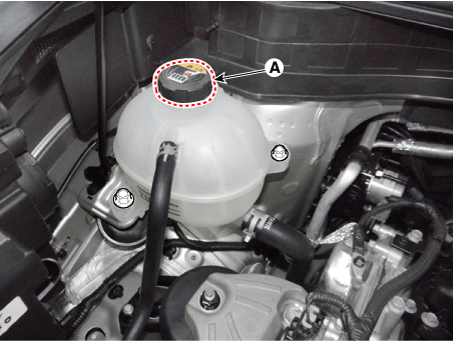

2.	Remove the pressure cap (A).

3.	Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

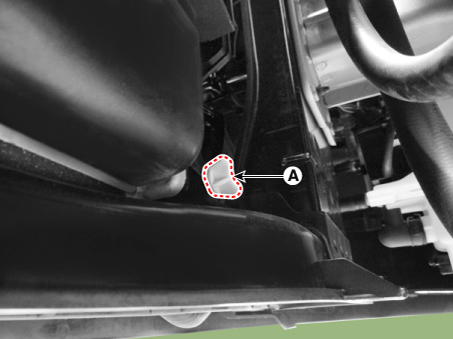

4.	Loosen the drain plug (A), and drain the coolant.

5.	Tighten the radiator drain plug securely.

6.	Clean the reservoir tank.

Fill the reservoir tank with coolant and tighten the pressure cap.

To most effectively bleed the air, pour the water slowly and press on the upper/lower radiator hoses.

8.	Start the engine and allow to come to normal operating temperature. Wait for the cooling fans to turn on several times. Accelerate the engine to aid in purging trapped air. Shut engine off.

9.	Wait until the engine is cool.

10.	Repeat steps 1 to 8 until the drained water runs clear.

11.

Fill fluid mixture with coolant and water(5:5) (Tropical region – 4:6) slowly through the reservoir tank. Push the upper/lower hoses of the radiator so as bleed air easily.

•	Use only genuine antifreeze/coolant.

•	For best corrosion protection, the coolant concentration must be maintained year-round at 35% minimum. Coolant concentrations less than 35% may not provide sufficient protection against corrosion or freezing.

•	Coolant concentrations greater then 60% will impair cooling efficiency and are not recommended.

•	Do not mix different brands of antifreeze/coolants.

•	Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.

12.	Start the engine and run until coolant circulates. When the cooling fan operates and coolant circulates, refill coolant through the reservoir tank.

13.	Repeat step 11 until the cooling fan operates 3 - 5 times and bleed air sufficiently out of the cooling system.

14.	Fill the reservoir tank to the "MAX" (or "FULL") line with coolant and tighten the pressure cap.

15.	Run the vehicle under idle until the cooling fan operates 2 - 3 times.

16.	Stop the engine and wait for coolant to cool down.

17.

Repeat 10 to 15 to bleed air out of the cooling system until the coolant level doesn't fall any more.

As it is to bleed air out of the cooling system and refill coolant when coolant cools down completely, recheck the coolant level in the reservoir tank 2-3 days after replacing coolant.

Coolant capacity :

Approx. 7.1 L (1.87 U.S.gal., 7.50 U.S.qt., 6.24 lmp.qt.)

Inspection

Radiator hoses

Check radiator hoses for the following:

(1)	Improper attachment

(2)

Leaks

(3)

Cracks

(4)

Damage

(5)	Loose connections

(6)

Chafing

(7)	Deterioration

Coolant level

1.	Check the coolant level in the coolant reservoir. Make sure it is between the "F" mark and "L" mark.

2.	If the coolant level in the coolant reservoir is at or below the "L" mark, add coolant to bring it between the "L" and "F" marks, then inspect the cooling system for leaks.

Coolant quality

1.	Remove the radiator cap.

2.	Check if there are any excessive deposits of rust or scale around the radiator cap sub-assembly and radiator filler hole. Also, the coolant should be free of oil. If excessively dirty, clean the coolant passage and replace the coolant.

3.	Install the radiator cap.

Troubleshooting

Engine Overheat Troubleshooting Inspection Remedy Visual inspection Inspect for shortage of coolant in reservoir tank . ...

Radiator Components and components location

Components 1. Reservoir tank 2. Radiator reservoir hose 3. Radiator upper bracket [RH] 4. Radiator upper bracket [LH] 5. Radiator 6. Radiator upper ...
