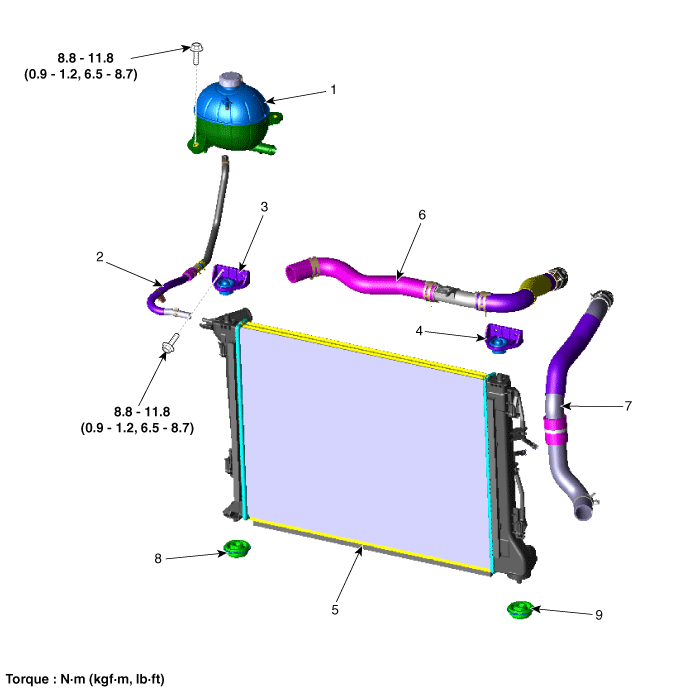

Components

1. Reservoir tank
2. Radiator reservoir hose
3. Radiator upper bracket [RH]
4. Radiator upper bracket [LH]
5. Radiator

6. Radiator upper hose
7. Radiator lower hose
8. Radiator lower mounting insulator [RH]
9. Radiator lower mounting insulator [LH]

Coolant Repair procedures

Refilling And Bleeding Never remove the radiator cap when the engine is hot. Serious scalding could be caus ...

Radiator Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air duct. (Refer to Intake and Exhaust Syst ...
