Kia Sportage: Front / Rear Parking Assist System / Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Front / Rear Parking Assist System / Components and components location

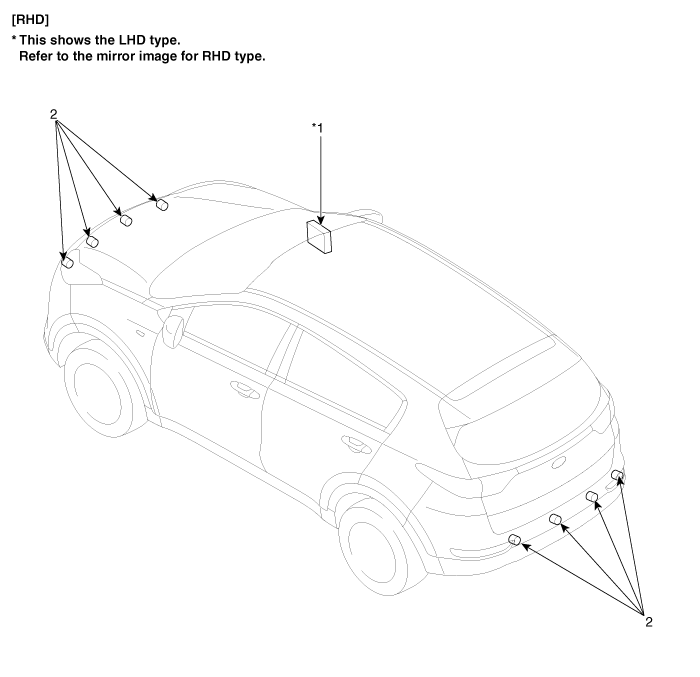

Component Location

1. BCM (Body Control Module)

2. Ultrasonic sensor

Rear parking assist control unit function is built in BCM (Body Control Module).

Specifications

Specification Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range ...

Description and operation

System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed. The sensor uses ultraso ...
