Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.

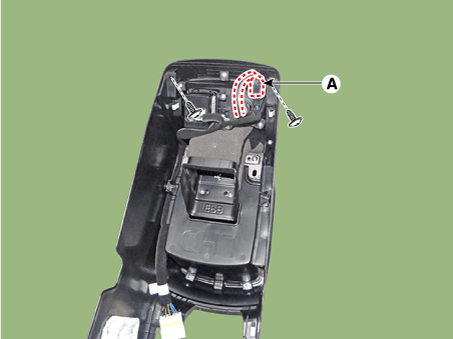

Flip over the console and disconnect the rear console connector (A) after loosening the screws.

3.

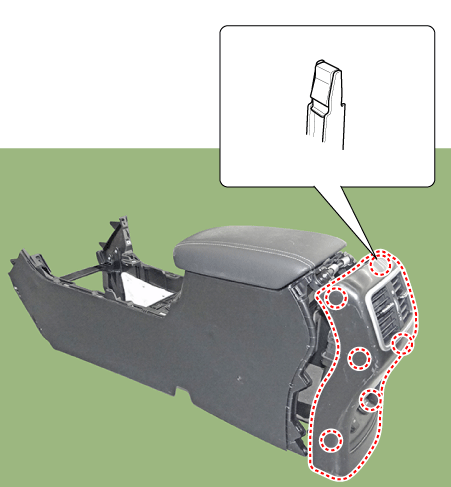

Using a remover, remove the rear console cover (A).

4.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
Rear Console Cover Components and components location
Component Location 1. Rear console cover ...

Console Armrest Components and components location
Component Location 1. Console armrest ...
