Kia Sportage: Rear Door / Components and components location

Kia Sportage QL (2015-2023) Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

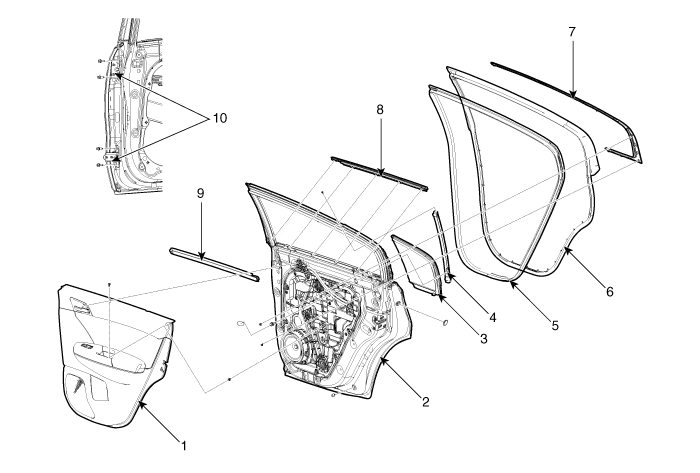

Components

1. Rear door trim
2. Rear door panel & module
3. Rear door division channel
4. Rear door fixed glass
5. Rear door body side weatherstrip

6. Rear door side weatherstrip
7. Rear door frame moulding
8. Rear door belt outside weatherstrip
9. Rear door belt inside weatherstrip
10. Rear door hinge

Repair procedures

Adjustment Glass Adjustment Check the glass run channel for damage or deterioration, and replace them i ...
