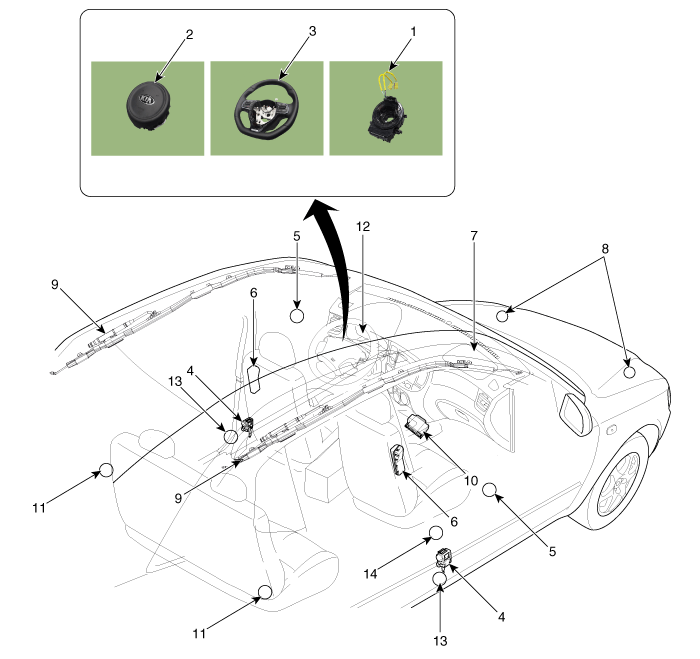

Components Location

1. Clock Spring
2. Driver Airbag (DAB)
3. Steering Wheel
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (F- SIS)
6. Side Airbag (SAB)
7. Passenger Airbag (PAB)
8. Front impact sensor (FIS)
9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Rear Gravity side Impact Sensor(R-SIS)
12. Airbag Warning Lamp
13. Front Gravity side Impact Sensor(G-SIS)
14. Emergency Fastening Device(EFD)
