Kia Sportage: Body Side Molding / Rear Mud Guard Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

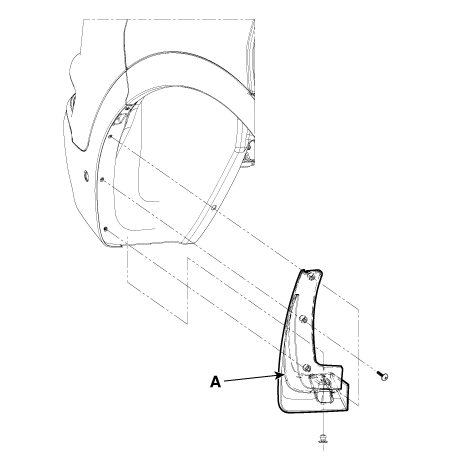

Remove the rear mud guard (A), after loosening the mounting screws.
|
| 2. |
Install in the reverse order of removal.
|
Replace any damaged clips.
|
|
Replacement
Put on gloves to protect your hands.
...
Replacement
Put on gloves to protect your hands.
...
