Inspection
1.
Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch.
Display
Fail description
00
Normal
50
Cluster ion generator fault

* For diagnostic procedure, refer to DTC guide.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box housing.
(Refer to Body - "Glove Box Housing")
3.

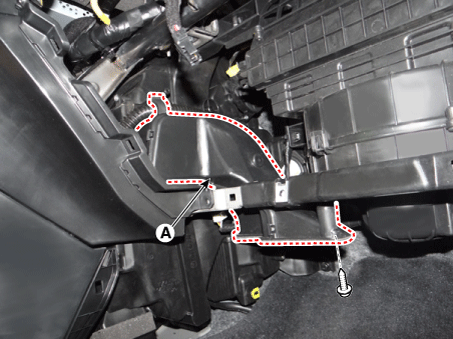

Remove the passenger side shower duct (A) after loosening the screws.

4.

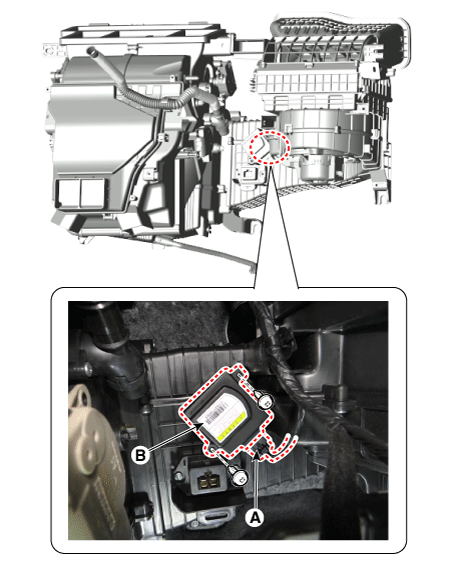

Disconnect the cluster ionizer connector (A).
5.
Remove the cluster ionizer (A) after loosening the screws.

6.
Install in the reverse order of removal.
Cluster Ionizer (DATC only) Description and operation
Description The cluster ionizer disinfects and decomposes bad smell from the air conditioner or air inflow. Also, it cleans the air inside the vehicle. When the ignition is swi ...
