Kia Sportage: Power Tailgate System / Anti-Pinch Strip Repair procedures

Kia Sportage QL (2015-2020) Service Manual / Body Electrical System / Power Tailgate System / Anti-Pinch Strip Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate upper trim.
(Refer to Body - "Tailgate Trim")
3.
Remove the tailgate side trim.
(Refer to Body - "Tailgate Trim")
4.

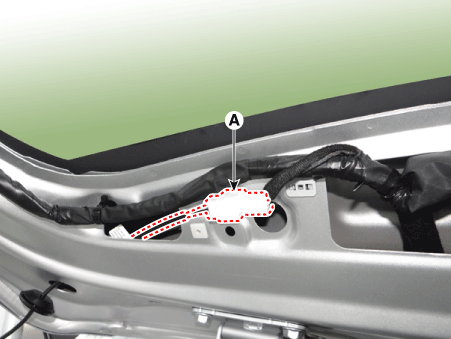

Disconnect the anti-pinch strip connector (A).

5.

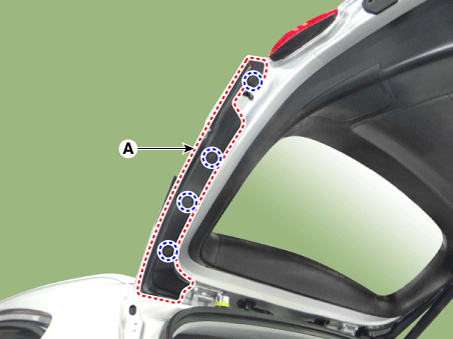

Remove the anti-pinch strip (A) after removing the mounting clips.

Installation
1.
Install the power tailgate anti-pinch strip.
2.
Disconnect the power tailgate anti-pinch strip sensor connector.
3.
Install the tailgate side trim.
4.
Install the tailgate upper trim.
5.
Connect the negative (-) battery terminal.
Inspection
Inspection of the Anti-Pinch Strip
Refer to Power Tailgate System - "Troubleshooting"
Power Tailgate Latch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the tailgate trim. (Refer to Body - "Tailgate Trim" ...

PTG Spindle Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear pillar trim. (Refer to Body - "Rear Pillar Tri ...
