Description
The Alternator has eight built-in diodes, each rectifying AC current to DC current.
Therefore, DC current appears at alternator "B" terminal.
In addition, the charging voltage of this alternator is regulated by the battery voltage detection system.
The alternator is regulated by the battery voltage detection system.
The main components of the alternator are the rotor, stator, rectifier, capacitor brushes, bearings and V-ribbed belt pulley.
The brush holder contains a built-in electronic voltage regulator.

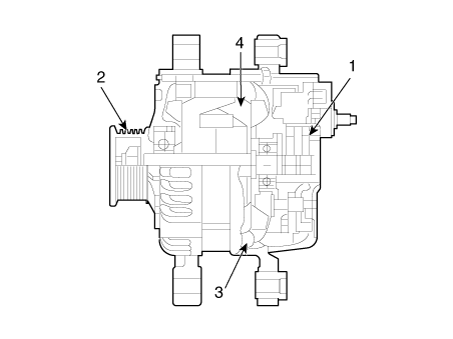

1. Brush
2. Drive belt pulley
3. Rotor
4. Stator

Alternator Specifications
Specification Alternator Item Specification Rated voltage 13.5V , 140A Speed in use 1,500 - 18, ...

Alternator Schematic diagrams
Circuit Diagram    • COM signal - When controlling the voltage generated, the ECM ...
