Kia Sportage: Air bag - advanced supplemental restraint system / Air bag warning label
.png)
.png)

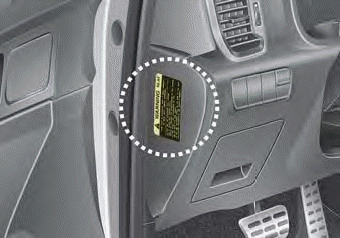

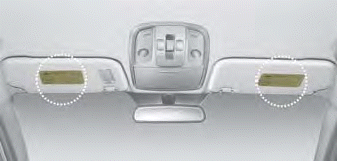

Air bag warning labels, some required by the U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to the sunvisor to alert the driver and passengers
of potential risks of the air bag system.
The SRS is virtually maintenancefree and so there are no parts you can safely
service by yourself. If the SRS air bag warning light does not illuminate, or continuously
remains on, have your vehic ...
