Kia Sportage: Headrest (for front seat) / Adjusting the height up and down

Kia Sportage QL (2015-2020) Owners Manual / Safety features of your vehicle / Seat / Headrest (for front seat) / Adjusting the height up and down

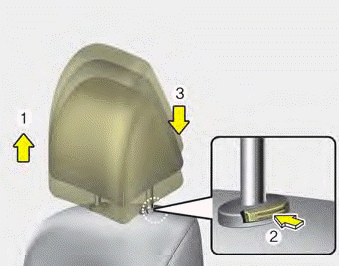

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

CAUTION

Excessive pulling or pushing may damage the headrest.

✽ NOTICE

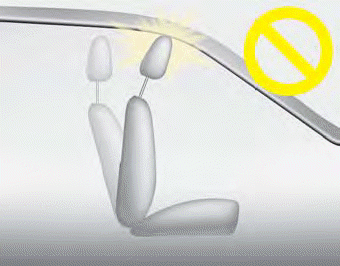

If you recline the seatback towards the front with the headrest and seat cushion raised, the headrest may come in contact with the sunvisor or other parts of the vehicle.

Headrest (for front seat)
The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort. The headrest not only provides comfort for the driver and front passenger, ...

Removal and reinstallation
■ Type A ■ Type B To remove the headrest: 1. Recline the seatback (2) with the recline lever or switch (1). 2. Raise headrest as far as it can go. 3. Press the headrest release button (3) ...
