Specification
Battery
▷MF68L-BCI : Openable
Item
Specification
Capacity [20 hr / 5 hr] (AH)
68 / 54
Cold Cranking Amperage (A)
600 (SAE) / 480 (EN)
Reserve Capacity (Min)
113
Specific Gravity
1.27 - 1.29 [25°C (77°F)]
Voltage (V)
12

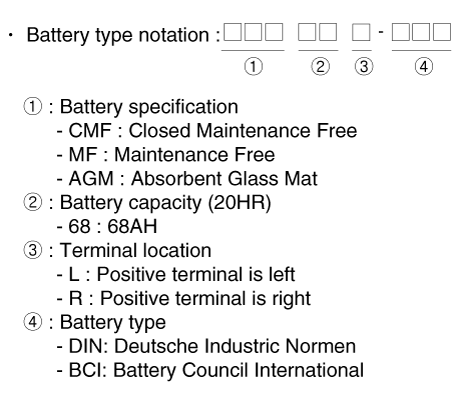

Model type description

Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
The higher the CCA rating, the greater the starting power of the battery.
RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

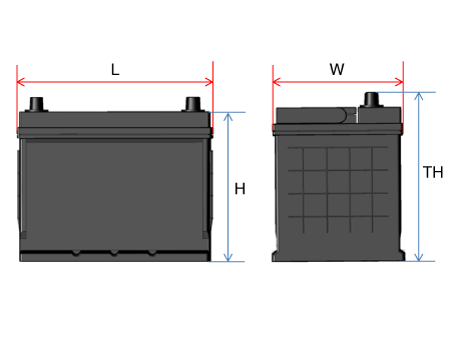

BCI Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
28/35
188 - 192
126 - 130
198 - 202
218 - 222
32/40
194 - 198
133 - 137
199 - 203
223 - 227
36/45
203 - 207
173 - 177
200 - 204
221 - 225
44/55
213 - 217
173 - 177
198 - 202
218 - 222
48/60
228 - 232
173 - 177
200 - 204
221 - 225
54/68
258 - 262
173 - 177
198 - 202
220 - 224
56/70
258 - 262
173 - 177
198 - 202
223 - 227
64/80
274 - 278
170 - 174
198 - 202
221 - 225
70/88
349 - 353
172 - 176
186 - 200
183 - 187
72/90
300 - 304
170 - 174
200 - 204
221 - 225
76/95
294 - 298
172 - 176
198 - 202
220 - 224
80/100
326 - 330
170 - 174
203 - 207
225 - 229

DIN Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
36/45
205 - 207
173 - 175
164 - 168
188 - 190
48/60
240 - 242
173 - 175
164 - 168
188 - 190
54/68
276 - 278
173 - 175
164 - 168
188 - 190
64/80
313 - 315
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
80/100
351 - 353
173 - 175
164 - 168
188 - 190
88/110
392 - 394
173 - 175
164 - 168
188 - 190

AGM DIN Type
Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
40/50
205 - 207
173 - 175
164 - 168
188 - 190
48/60
227 - 229
173 - 175
164 - 168
188 - 190
56/70
276 - 278
173 - 175
164 - 168
188 - 190
64/80
312 - 314
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
84/105
392 - 394
173 - 175
164 - 168
188 - 190
