Kia Sportage: 4WD Control System / 4WD ECU Flow diagram

Kia Sportage QL (2015-2023) Service Manual / 4 Wheel Drive (4WD) System / 4WD Control System / 4WD ECU Flow diagram

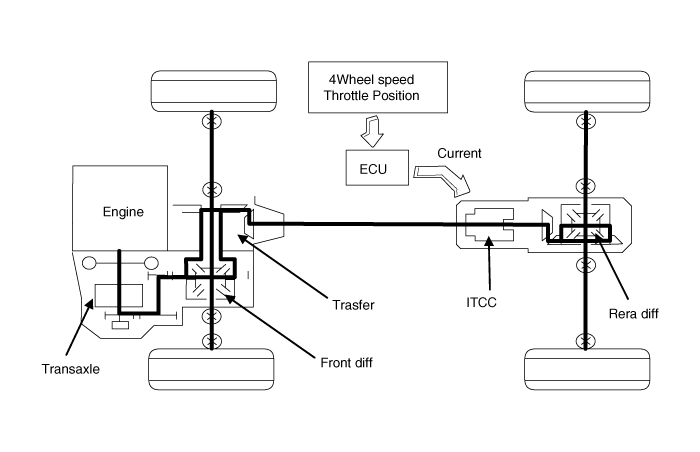

Power Flow Diagram

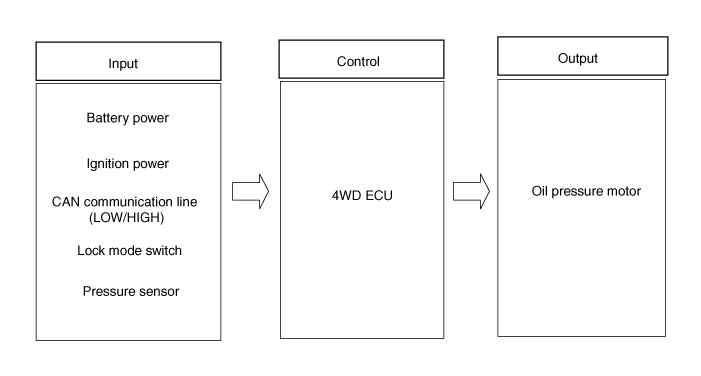

4WD ECU Input&Output Diagram

4WD ECU Description and operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision ...

4WD ECU Schematic diagrams
Circuit Diagram 4WD ECU Connector 4WD ECU Terminal function Pin Function 1 CAN communication line (Low) ...
