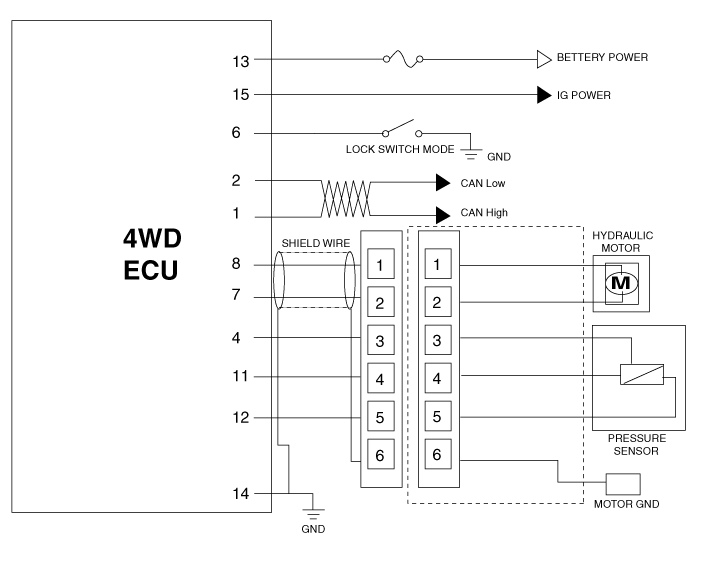

Kia Sportage: 4WD Control System / 4WD ECU Schematic diagrams

4WD ECU Terminal function
Pin
|
Function
|
1
|
CAN communication line (Low)
|
2
|
CAN communication line (High)
|
3
|
-
|
4
|
Pressure sensor signal(+)
|
5
|
-
|
6
|
4WD Lock mode switch
|
7
|
Oil hydraulic motor(-)
|
8
|
Oil hydraulic motor(+)
|
9
|
-
|
10
|
-
|
11
|
Pressure sensor(Power)
|
12
|
Pressure sensor signal(-)
|
13
|
Battery power
|
14
|
Ground
|
15
|
ON/Start Power
|
16
|
-
|
17
|
-
|
18
|
-
|

Power Flow Diagram
4WD ECU Input&Output Diagram
...
Removal
1.
Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning
with the GDS tool.
(Refer to 4WD Control System - "Repair procedu ...
