Kia Sportage: Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve (35R/C_VFS) Schematic diagrams

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve (35R/C_VFS) Schematic diagrams

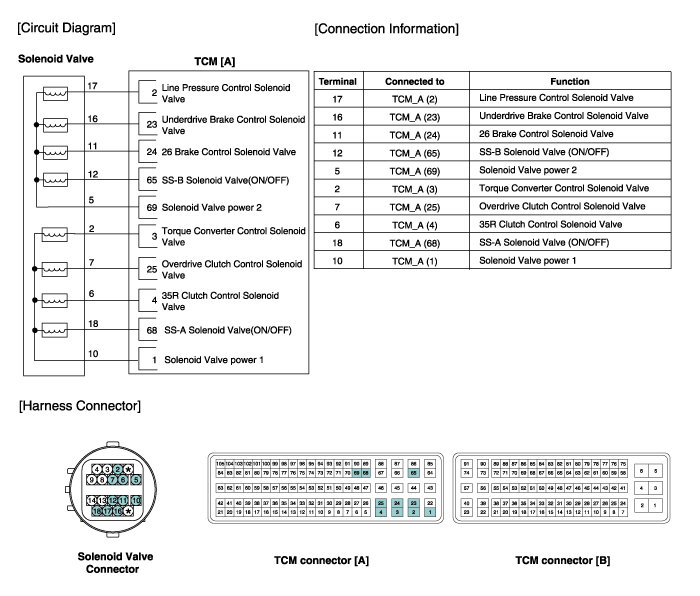

Circuit Diagram

35R Clutch Control Solenoid Valve (35R/C_VFS) Description and operation
Description • 35R clutch control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current t ...

35R Clutch Control Solenoid Valve (35R/C_VFS) Schematic diagrams
Circuit Diagram ...
