Kia Sportage: Engine Control System / Variable Charge Motion Actuator (VCMA) Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Engine Control / Fuel System / Engine Control System / Variable Charge Motion Actuator (VCMA) Schematic diagrams

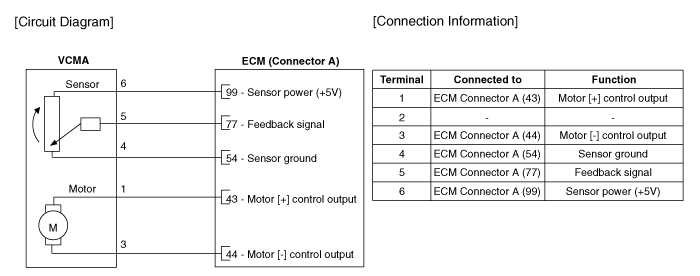

Circuit Diagram

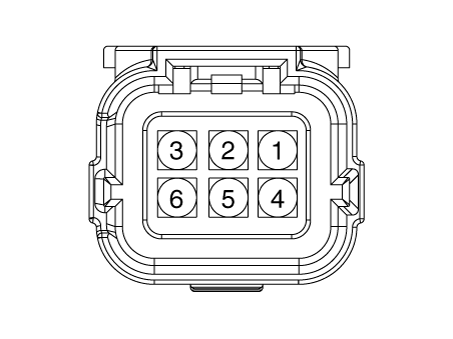

Harness Connector

Variable Charge Motion Actuator (VCMA) Description and operation
Description Variable charge motion actuator reinforces the tumble of the air that flows inside the cylinder, improves combustion performance, and enhances engine torque and fuel ...

Variable Charge Motion Actuator (VCMA) Repair procedures
Removal 1. Turn the ignition switch off and disconnect the battery (-) terminal. 2. Remove variable charge motion actuator connector ...
