Description
Underdrive brake control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, hydraulic pressure of underdrive brake is controlled by solenoid valve.

Underdrive brake control solenoid valve operation table

UD/B_VFS
N/H
N, P

1

2

3

4

5

6

R


● : Connected status
Underdrive Brake Control Solenoid Valve (UD/B_VFS) Components and components location

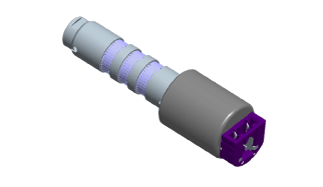

Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

Underdrive Brake Control Solenoid Valve (UD/B_VFS) Schematic diagrams
Circuit Diagram ...
