Kia Sportage: Trip modes (Trip computer) / Fuel Economy

Kia Sportage QL (2015-2020) Owners Manual / Features of your vehicle / Trip modes (Trip computer) / Fuel Economy

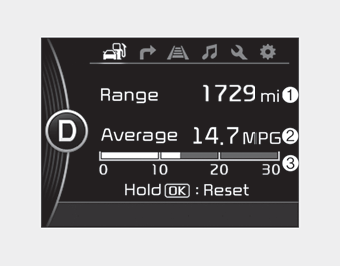

Range (1)

Average Fuel Economy (2)

Manual reset

To reset average fuel economy manually, press the OK button (reset) on the steering wheel for more than 1 second when the average fuel economy is displayed.

Automatic reset

To make the average fuel economy reset automatically whenever refueling, select the “Auto Reset” mode in User Setting menu of the LCD display (Refer to “LCD Display”).

✽ NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.03 miles (50 meters) since the ignition switch or Engine Start/Stop button is turned to ON.

Instant Fuel Economy (3)

Trip Modes
To change the trip mode, scroll the TRIP scroll switch (/) in the trip computer mode. ...

Trip A/B
Tripmeter (1) • The tripmeter is the total driving distance since the last tripmeter reset. - Distance range: 0.0 ~ 9999.9 mi. or km To reset the tripmeter, press the OK button (reset) on the s ...
