Description

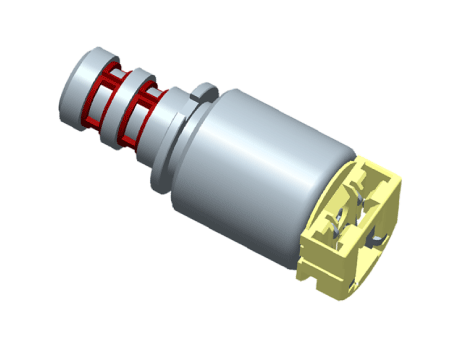

•	Torque converter control solenoid valve is a Variable Force Solenoid (VFS) type.

•	When TCM supplies variable current to solenoid valve, hydraulic pressure of torque converter clutch is controlled by solenoid valve.

Torque Converter Control Solenoid Valve (T/CON_VFS) Components and components location

Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Schematic diagrams

Circuit Diagram ...
