Kia Sportage: Interior features / Sunvisor
.png)
Use the sunvisor to shield direct light through the front or side windows.
To use the sunvisor, pull it downward.

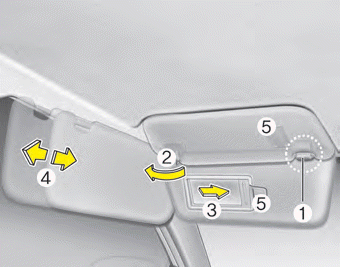

To use the sunvisor for the side window, pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the visor and slide the mirror cover (3).
Adjust the sunvisor extension forward or backward (4).
The ticket holder (5) is provided for holding a tollgate ticket. (if equipped)
CAUTION - Vanity mirror lamp
If you use the vanity mirror lamp, turn off the lamp before returning the
sunvisor to its original position, otherwise it could result in battery discharge
and possible sunvisor damage.
