Kia Sportage: Interior features / Power outlet

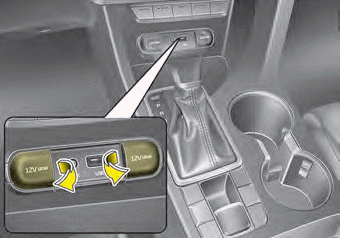

■ Front seat

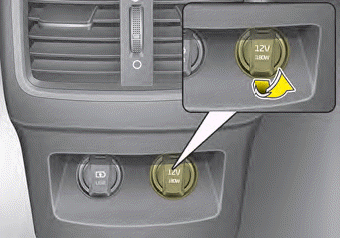

■ Rear seat
The power outlet is designed to provide power for mobile telephones or other
devices designed to operate with vehicle electrical systems. The devices should
draw less than 10 amps with the engine running.
- Use the power outlet only when the engine is running and remove the accessory
plug after use. Using the accessory plug for prolonged periods of time with
the engine off could cause the battery to discharge.
- Only use 12V electric accessories which are less than 10A in electric
capacity.
- Adjust the air-conditioner or heater to the lowest operating level when
using the power outlet.
- Close the cover when not in use.
- Some electronic devices can cause electronic interference when plugged
into a vehicle’s power outlet. These devices may cause excessive audio static
and malfunctions in other electronic systems or devices used in your vehicle.
- Push the plug in as far as it will go. If good contact is not made, the
plug may overheat and the fuse may open.
- Plug in battery equipped electronic devices with reverse current protection.
The current from the battery may flow into the vehicle’s electri cal/electronic
system and cause system malfunction.
WARNING - Electric shock
Do not put a finger or a foreign element (pen, etc.) into a power outlet and
do not touch with a wet hand. You may receive an electric shock.
✽ NOTICE
Do not use aftermarket chargers to charge devices. Only use device certified
cables to charge.
