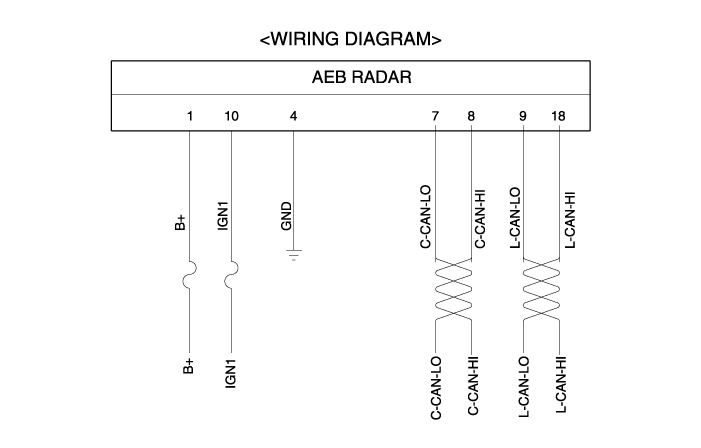

Schematic diagram

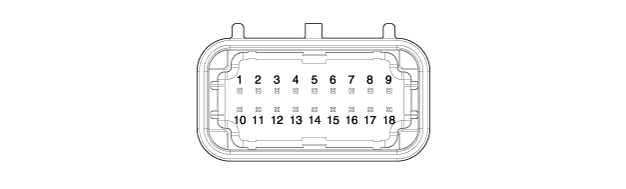

Terminal Function

NO.
Terminal function
1
B+
2
NC
3
NC
4
GND
5
NC
6
NC
7
C-CAN_LO
8
C-CAN_HI
9
L-CAN_LO
10
IGN1
11
NC
12
NC
13
NC
14
NC
15
NC
16
NC
17
NC
18
L-CAN_HI

Components and components location
Components The following is the configuration of the AEB system. – Detection device (radar and camera) that can recognize potential obstacles in the front. ...

Repair procedures
Inspection AEB function ON / OFF switch was included to USM (User Setting Menu) and the state of the factory is ON. When the IGN On, maintain ON condition by default. And does ...
