Removal
Front/Rear SPAS Sensor
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front/ rear bumper cover.
(Refer to Body - "Front Bumper Cover")
(Refer to Body - "Rear Bumper Cover")
3.

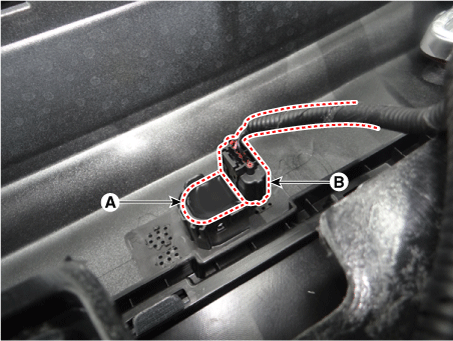

Disconnect the connector (A) from the ultrasonic sensor.

4.

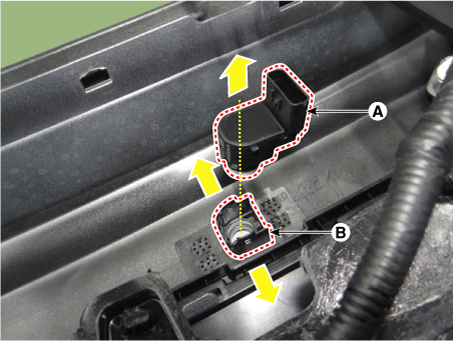

Pull out ths ultrasonic sensor (A) after opening the sensor holder (B).

Installation
Front/Rear SPAS Sensor
1.
Install the SPAS sensor and connector.
2.
Install the front/rear bumper cover.
3.
Connect the negative (-) battery terminal.
