Kia Sportage: Automatic Transaxle Control System / Shift Lever Components and components location

Kia Sportage QL (2015-2025) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Lever Components and components location

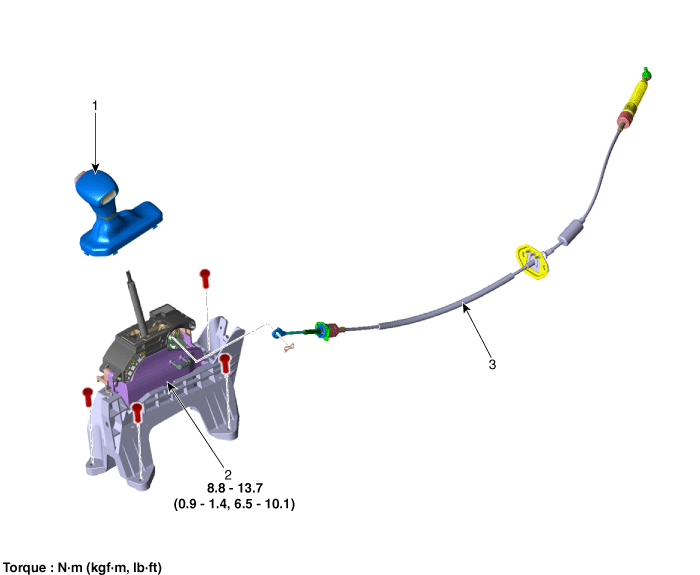

Components

1. Shift lever knob & boots
2. Shift lever assembly

3. Shift cable assembly
