Kia Sportage: Seat belt restraint system / Seat belt warning

Kia Sportage QL (2015-2023) Owners Manual / Safety features of your vehicle / Seat belts / Seat belt restraint system / Seat belt warning

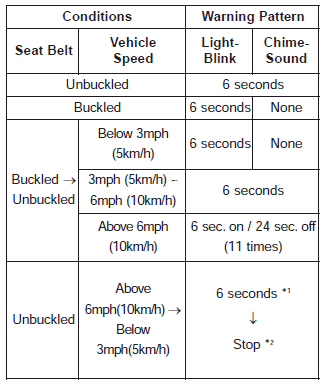

The driver's seat belt warning light and chime will activate pursuant to the following table when the ignition switch is in “ON” position.

*1 Warning pattern repeats 11 times with an interval of 24 seconds. If the driver's seat belt is buckled, the light will stop within 6 seconds and chime will stop immediately. *2 The light will stop within 6 seconds and chime will stop immediately.

Seat belt restraint system
For maximum restraint system protection, the seat belts must always be used whenever the vehicle is moving. A properly positioned shoulder belt should be positioned midway over your shoulder ...

Seat belt - Driver's 3-point system with emergency locking retractor
To fasten your seat belt: To fasten your seat belt, pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks in ...
