Kia Sportage: SRSCM / Seat Belt Buckle Switch (BS) Components and components location

Kia Sportage QL (2015-2020) Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS) Components and components location

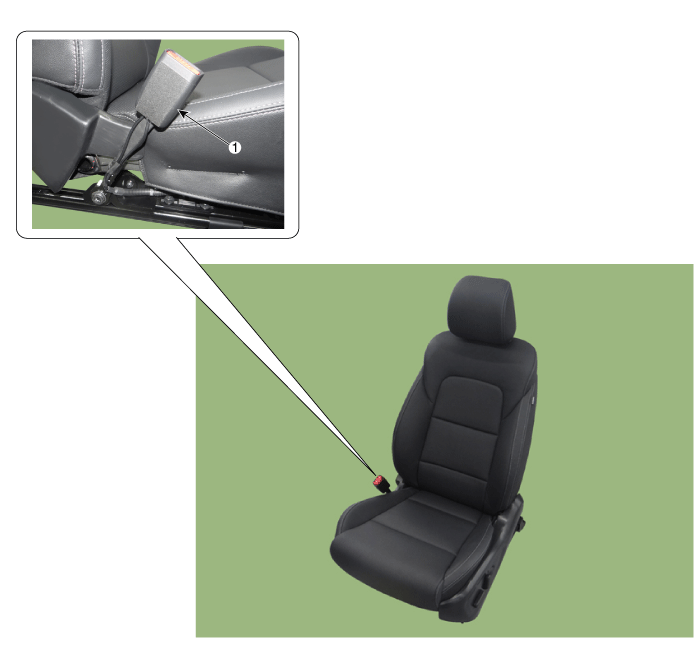

Components

1. Seat Belt Buckle Switch (BS)
Seat Belt Buckle Switch (BS) Description and operation
Description The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt bu ...

Seat Belt Buckle Switch (BS) Repair procedures
Removal 1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work. 2. Remove the fr ...
