Kia Sportage: Auto Lighting Control System / Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Auto Lighting Control System / Schematic diagrams

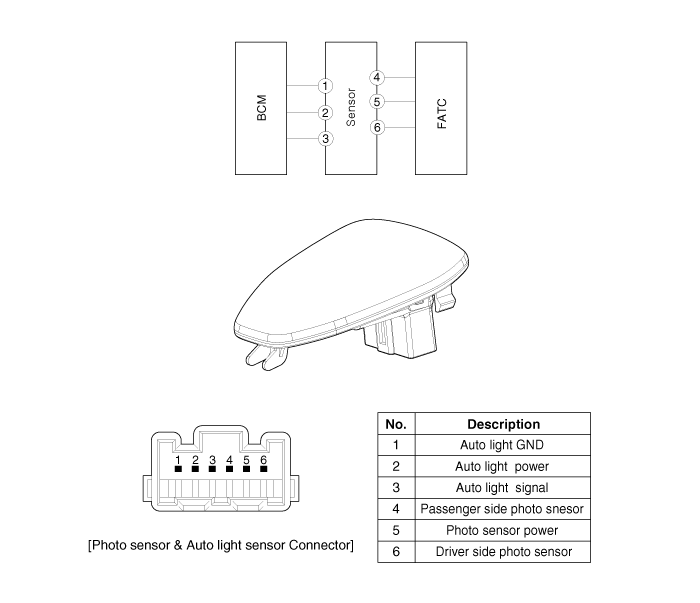

Circuit Diagram

Components and components location
Component Location 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) 4. Tail lamps 5. BCM (Body Control Module) ...

Description and operation
Description It's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination ...
